Bulletproof node.js project architecture

Santiago Quinteros

24 Apr 2019

10 min read

Bulletproof node.js project architecture
  • Node.js

Update 04/21/2019: Implementation example repository

Introduction

Express.js is great frameworks for making a node.js REST APIs however it doesn't give you any clue on how to organise your node.js project.

While it may sound silly, this is a real problem.

The correct organization of your node.js project structure will avoid duplication of code, will improve stability, and potentially will help you scale your services if is done correctly.

This post is based on extensive research, from my years of experience dealing with a poor structured node.js project, bad patterns, and countless hours of refactoring code and moving things around.

If you need help to align your node.js project architecture, just drop me a line at santiago@softwareontheroad.com

Table of contents

  • The folder structure 🏢
  • 3 Layer architecture 🥪
  • Service Layer 💼
  • Pub/Sub Layer ️️️️🎙️️
  • Dependency Injection 💉
  • Unit Testing 🕵🏻
  • Cron Jobs and recurring task ⚡
  • Configurations and secrets 🤫
  • Loaders 🏗️
  • Example repository

The folder structure 🏢

Here is the node.js project structure that I'm talking about.

I use this in every node.js REST API service that I build, let's see in details what every component do.

src
│   app.js          # App entry point
└───api             # Express route controllers for all the endpoints of the app
└───config          # Environment variables and configuration related stuff
└───jobs            # Jobs definitions for agenda.js
└───loaders         # Split the startup process into modules
└───models          # Database models
└───services        # All the business logic is here
└───subscribers     # Event handlers for async task
└───types           # Type declaration files (d.ts) for Typescript

It is more than just a way of ordering javascript files...

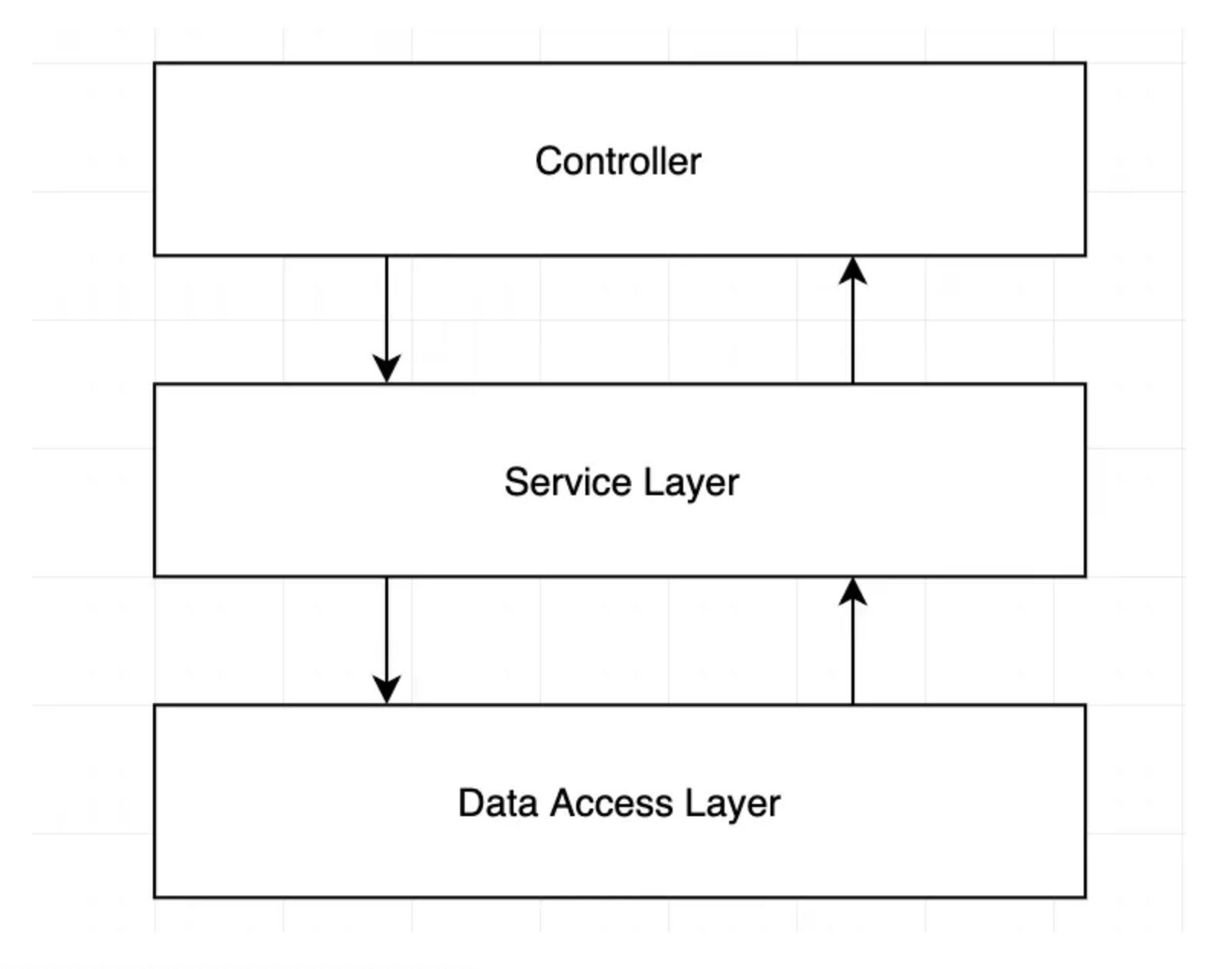

3 Layer architecture 🥪

The idea is to use the principle of separation of concerns to move the business logic away from the node.js API Routes.

Screenshot 2019-04-24 at 16.09.01.jpg

Because someday, you will want to use your business logic on a CLI tool, or not going far, in a recurring task.

And make an API call from the node.js server to itself it's not a good idea...

Screenshot 2019-04-24 at 16.09.47.jpg

☠️ Don't put your business logic inside the controllers!! ☠️

You may be tempted to just use the express.js controllers to store the business logic of your application, but this quickly becomes spaghetti code, as soon as you need to write unit tests, you will end up dealing with complex mocks for req or res express.js objects.

It's complicated to distinguish when a response should be sent, and when to continue processing in 'background', let's say after the response is sent to the client.

Here is an example of what not to do.

route.post('/', async (req, res, next) => {

  // This should be a middleware or should be handled by a library like Joi.
  const userDTO = req.body;
  const isUserValid = validators.user(userDTO)
  if(!isUserValid) {
    return res.status(400).end();
  }

  // Lot of business logic here...
  const userRecord = await UserModel.create(userDTO);
  delete userRecord.password;
  delete userRecord.salt;
  const companyRecord = await CompanyModel.create(userRecord);
  const companyDashboard = await CompanyDashboard.create(userRecord, companyRecord);

  ...whatever...


  // And here is the 'optimization' that messed up everything.
  // The response is sent to client...
  res.json({ user: userRecord, company: companyRecord });

  // But code execution continues :(
  const salaryRecord = await SalaryModel.create(userRecord, companyRecord);
  eventTracker.track('user_signup',userRecord,companyRecord,salaryRecord);
  intercom.createUser(userRecord);
  gaAnalytics.event('user_signup',userRecord);
  await EmailService.startSignupSequence(userRecord)
});

Use a service layer for your business logic 💼

This layer is where your business logic should live.

It's just a collection of classes with clear purposes, following the SOLID principles applied to node.js.

In this layer there should not exists any form of 'SQL query', use the data access layer for that.

  • Move your code away from the express.js router

  • Don't pass the req or res object to the service layer

  • Don't return anything related to the HTTP transport layer like a status code or headers from the service layer.

    Example

    route.post('/',
      validators.userSignup, // this middleware take care of validation
      async (req, res, next) => {
        // The actual responsability of the route layer.
        const userDTO = req.body;

        // Call to service layer.
        // Abstraction on how to access the data layer and the business logic.
        const { user, company } = await UserService.Signup(userDTO);

        // Return a response to client.
        return res.json({ user, company });
      });


    Here is how your service will be working behind the scenes.

    import UserModel from '../models/user';
    import CompanyModel from '../models/company';

    export default class UserService() {

      async Signup(user) {
        const userRecord = await UserModel.create(user);
        const companyRecord = await CompanyModel.create(userRecord); // needs userRecord to have the database id
        const salaryRecord = await SalaryModel.create(userRecord, companyRecord); // depends on user and company to be created

        ...whatever

        await EmailService.startSignupSequence(userRecord)

        ...do more stuff

        return { user: userRecord, company: companyRecord };
      }
    }



    Visit the example repository

Use a Pub/Sub layer too 🎙️

The pub/sub pattern goes beyond the classic 3 layer architecture proposed here but it's extremely useful.

The simple node.js API endpoint that creates a user right now, may want to call third-party services, maybe to an analytics service, or maybe start an email sequence.

Sooner than later, that simple "create" operation will be doing several things, and you will end up with 1000 lines of code, all in a single function.

That violates the principle of single responsibility.

So, it's better to separate responsibilities from the start, so your code remains maintainable.

import UserModel from '../models/user';
import CompanyModel from '../models/company';
import SalaryModel from '../models/salary';

export default class UserService() {

  async Signup(user) {
    const userRecord = await UserModel.create(user);
    const companyRecord = await CompanyModel.create(user);
    const salaryRecord = await SalaryModel.create(user, salary);

    eventTracker.track(
      'user_signup',
      userRecord,
      companyRecord,
      salaryRecord
    );

    intercom.createUser(
      userRecord
    );

    gaAnalytics.event(
      'user_signup',
      userRecord
    );

    await EmailService.startSignupSequence(userRecord)

    ...more stuff

    return { user: userRecord, company: companyRecord };
  }

}

An imperative call to a dependent service is not the best way of doing it.

A better approach is by emitting an event i.e. 'a user signed up with this email'.

And you are done, now it's the responsibility of the listeners to do their job.

import UserModel from '../models/user';
import CompanyModel from '../models/company';
import SalaryModel from '../models/salary';

export default class UserService() {

  async Signup(user) {
    const userRecord = await this.userModel.create(user);
    const companyRecord = await this.companyModel.create(user);
    this.eventEmitter.emit('user_signup', { user: userRecord, company: companyRecord })
    return userRecord
  }

}

Now you can split the event handlers/listeners into multiple files.

eventEmitter.on('user_signup', ({ user, company }) => {

  eventTracker.track(
    'user_signup',
    user,
    company,
  );

  intercom.createUser(
    user
  );

  gaAnalytics.event(
    'user_signup',
    user
  );
})
eventEmitter.on('user_signup', async ({ user, company }) => {
  const salaryRecord = await SalaryModel.create(user, company);
})
eventEmitter.on('user_signup', async ({ user, company }) => {
  await EmailService.startSignupSequence(user)
})

You can wrap the await statements into a try-catch block or you can just let it fail and handle the 'unhandledPromise' process.on('unhandledRejection',cb)

Dependency Injection 💉

D.I. or inversion of control (IoC) is a common pattern that will help the organization of your code, by 'injecting' or passing through the constructor the dependencies of your class or function.

By doing this way you will gain the flexibility to inject a 'compatible dependency' when, for example, you write the unit tests for the service, or when the service is used in another context.

Code with no D.I

import UserModel from '../models/user';
import CompanyModel from '../models/company';
import SalaryModel from '../models/salary';
class UserService {
  constructor(){}
  Sigup(){
    // Caling UserMode, CompanyModel, etc
    ...
  }
}

Code with manual dependency injection

export default class UserService {
  constructor(userModel, companyModel, salaryModel){
    this.userModel = userModel;
    this.companyModel = companyModel;
    this.salaryModel = salaryModel;
  }
  getMyUser(userId){
    // models available throug 'this'
    const user = this.userModel.findById(userId);
    return user;
  }
}

Now you can inject custom dependencies.

import UserService from '../services/user';
import UserModel from '../models/user';
import CompanyModel from '../models/company';
const salaryModelMock = {
  calculateNetSalary(){
    return 42;
  }
}
const userServiceInstance = new UserService(userModel, companyModel, salaryModelMock);
const user = await userServiceInstance.getMyUser('12346');

The amount of dependencies a service can have is infinite, and refactoring every instantiation of it when you add a new one is a boring and error-prone task.

That's why dependency injection frameworks were created.

The idea is you declare your dependencies in the class, and when you need an instance of that class, you just call the 'Service Locator'.

Let's see an example using typedi an npm library that brings D.I to node.js

You can read more on how to use typedi in the official documentation

WARNING typescript example

import { Service } from 'typedi';
@Service()
export default class UserService {
  constructor(
    private userModel,
    private companyModel,
    private salaryModel
  ){}

  getMyUser(userId){
    const user = this.userModel.findById(userId);
    return user;
  }
}

services/user.ts

Now typedi will take care of resolving any dependency the UserService require.

import { Container } from 'typedi';
import UserService from '../services/user';
const userServiceInstance = Container.get(UserService);
const user = await userServiceInstance.getMyUser('12346');

Abusing service locator calls is an anti-pattern

Using Dependency Injection with Express.js in Node.js

Using D.I. in express.js is the final piece of the puzzle for this node.js project architecture.

Routing layer

route.post('/',
  async (req, res, next) => {
    const userDTO = req.body;

    const userServiceInstance = Container.get(UserService) // Service locator

    const { user, company } = userServiceInstance.Signup(userDTO);

    return res.json({ user, company });
  });

Awesome, project is looking great ! It's so organised that makes me want to be coding something right now.

Visit the example repository

An unit test example 🕵🏻

By using dependency injection and these organisation patterns, unit testing becomes really simple.

You don't have to mock req/res objects or require(...) calls.

Example: Unit test for signup user method

tests/unit/services/user.js

import UserService from '../../../src/services/user';

describe('User service unit tests', () => {
  describe('Signup', () => {
    test('Should create user record and emit user_signup event', async () => {
      const eventEmitterService = {
        emit: jest.fn(),
      };

      const userModel = {
        create: (user) => {
          return {
            ...user,
            _id: 'mock-user-id'
          }
        },
      };

      const companyModel = {
        create: (user) => {
          return {
            owner: user._id,
            companyTaxId: '12345',
          }
        },
      };

      const userInput= {
        fullname: 'User Unit Test',
        email: 'test@example.com',
      };

      const userService = new UserService(userModel, companyModel, eventEmitterService);
      const userRecord = await userService.SignUp(teamId.toHexString(), userInput);

      expect(userRecord).toBeDefined();
      expect(userRecord._id).toBeDefined();
      expect(eventEmitterService.emit).toBeCalled();
    });
  })
})

Cron Jobs and recurring task ⚡

So, now that the business logic encapsulated into the service layer, it's easier to use it from a Cron job.

You should never rely on node.js setTimeout or another primitive way of delay the execution of code, but on a framework that persist your jobs, and the execution of them, in a database.

This way you will have control over the failed jobs, and feedback of those who succeed. I already wrote on good practice for this so, check my guide on using agenda.js the best task manager for node.js.

Configurations and secrets 🤫

Following the battle-tested concepts of Twelve-Factor App for node.js the best approach to store API Keys and database string connections, it's by using dotenv.

Put a .env file, that must never be committed (but it has to exist with default values in your repository) then, the npm package dotenv loads the .env file and insert the vars into the process.env object of node.js.

That could be enough but, I like to add an extra step. Have a config/index.ts file where the dotenv npm package and loads the .env file and then I use an object to store the variables, so we have a structure and code autocompletion.

config/index.js

const dotenv = require('dotenv');
// config() will read your .env file, parse the contents, assign it to process.env.
dotenv.config();

export default {
  port: process.env.PORT,
  databaseURL: process.env.DATABASE_URI,
  paypal: {
    publicKey: process.env.PAYPAL_PUBLIC_KEY,
    secretKey: process.env.PAYPAL_SECRET_KEY,
  },
  paypal: {
    publicKey: process.env.PAYPAL_PUBLIC_KEY,
    secretKey: process.env.PAYPAL_SECRET_KEY,
  },
  mailchimp: {
    apiKey: process.env.MAILCHIMP_API_KEY,
    sender: process.env.MAILCHIMP_SENDER,
  }
}

This way you avoid flooding your code with process.env.MY_RANDOM_VAR instructions, and by having the autocompletion you don't have to know how to name the env var.

Visit the example repository

Loaders 🏗️

I took this pattern from W3Tech microframework but without depending upon their package.

The idea is that you split the startup process of your node.js service into testable modules.

Let's see a classic express.js app initialization

const mongoose = require('mongoose');
const express = require('express');
const bodyParser = require('body-parser');
const session = require('express-session');
const cors = require('cors');
const errorhandler = require('errorhandler');
const app = express();

app.get('/status', (req, res) => { res.status(200).end(); });
app.head('/status', (req, res) => { res.status(200).end(); });
app.use(cors());
app.use(require('morgan')('dev'));
app.use(bodyParser.urlencoded({ extended: false }));
app.use(bodyParser.json(setupForStripeWebhooks));
app.use(require('method-override')());
app.use(express.static(__dirname + '/public'));
app.use(session({ secret: process.env.SECRET, cookie: { maxAge: 60000 }, resave: false, saveUninitialized: false }));
mongoose.connect(process.env.DATABASE_URL, { useNewUrlParser: true });

require('./config/passport');
require('./models/user');
require('./models/company');
app.use(require('./routes'));
app.use((req, res, next) => {
  var err = new Error('Not Found');
  err.status = 404;
  next(err);
});
app.use((err, req, res) => {
  res.status(err.status || 500);
  res.json({'errors': {
    message: err.message,
    error: {}
  }});
});


... more stuff

... maybe start up Redis

... maybe add more middlewares

async function startServer() {
  app.listen(process.env.PORT, err => {
    if (err) {
      console.log(err);
      return;
    }
    console.log(`Your server is ready !`);
  });
}

// Run the async function to start our server
startServer();

As you see, this part of your application can be a real mess.

Here is an effective way to deal with it.

const loaders = require('./loaders');
const express = require('express');

async function startServer() {

  const app = express();

  await loaders.init({ expressApp: app });

  app.listen(process.env.PORT, err => {
    if (err) {
      console.log(err);
      return;
    }
    console.log(`Your server is ready !`);
  });
}

startServer();

Now the loaders are just tiny files with a concise purpose

loaders/index.js

import expressLoader from './express';
import mongooseLoader from './mongoose';

export default async ({ expressApp }) => {
  const mongoConnection = await mongooseLoader();
  console.log('MongoDB Intialized');
  await expressLoader({ app: expressApp });
  console.log('Express Intialized');

  // ... more loaders can be here

  // ... Initialize agenda
  // ... or Redis, or whatever you want
}

The express loader

loaders/express.js


import * as express from 'express';
import * as bodyParser from 'body-parser';
import * as cors from 'cors';

export default async ({ app }: { app: express.Application }) => {

  app.get('/status', (req, res) => { res.status(200).end(); });
  app.head('/status', (req, res) => { res.status(200).end(); });
  app.enable('trust proxy');

  app.use(cors());
  app.use(require('morgan')('dev'));
  app.use(bodyParser.urlencoded({ extended: false }));

  // ...More middlewares

  // Return the express app
  return app;
})

The mongo loader

loaders/mongoose.js

import * as mongoose from 'mongoose'
export default async (): Promise<any> => {
  const connection = await mongoose.connect(process.env.DATABASE_URL, { useNewUrlParser: true });
  return connection.connection.db;
}

Conclusion

We deep dive into a production tested node.js project structure, here are some summarized tips:

  • Use a 3 layer architecture.

  • Don't put your business logic into the express.js controllers.

  • Use PubSub pattern and emit events for background tasks.

  • Have dependency injection for your peace of mind.

  • Never leak your passwords, secrets and API keys, use a configuration manager.

  • Split your node.js server configurations into small modules that can be loaded independently.

See the example repository here

Did you like this article?

Related jobs

See all

Title

The company

  • Remote

Title

The company

  • Remote

Title

The company

  • Remote

Title

The company

  • Remote

Related articles

JavaScript Functional Style Made Simple

JavaScript Functional Style Made Simple

Daniel Boros

12 Sep 2021

JavaScript Functional Style Made Simple

JavaScript Functional Style Made Simple

Daniel Boros

12 Sep 2021

WorksHub

CareersCompaniesSitemapFunctional WorksBlockchain WorksJavaScript WorksAI WorksGolang WorksJava WorksPython WorksRemote Works
hello@works-hub.com

Ground Floor, Verse Building, 18 Brunswick Place, London, N1 6DZ

108 E 16th Street, New York, NY 10003

Subscribe to our newsletter

Join over 111,000 others and get access to exclusive content, job opportunities and more!

© 2024 WorksHub

Privacy PolicyDeveloped by WorksHub
